Stewart Warner Amp Gauge Wiring Diagram

Deluxe fuel level gauge p n 82303 stewart warner. Diagram chevy 6 to 12 volt wiring full version hd quality pcbdiagram beatricemonroy it.

Stewart Warner Gauges Wiring Diagrams Wiring Diagram And Schematic Diagram Images

It shows the components of the circuit.

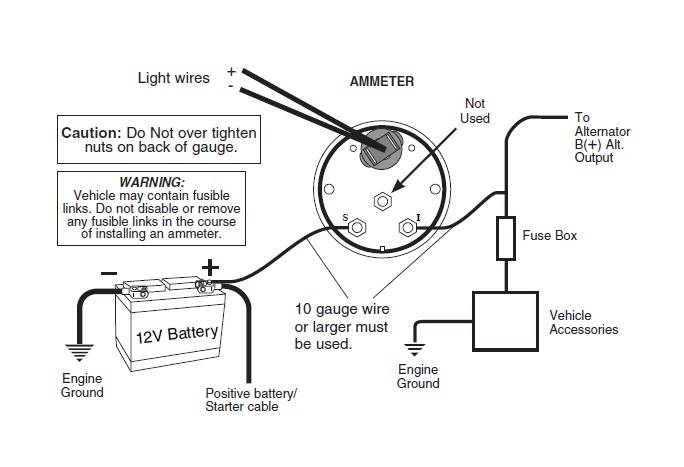

Stewart warner amp gauge wiring diagram. Connect an 8 awg (10.0 mm. 6) connect a minimum 10awg wire from the “+12v” terminal of the starter solenoid to terminal “i” on the back of the gauge. 49 and mechanical gauges for a variety of applications.

The back of the amp gauge. It includes directions and diagrams for various types of wiring techniques as well as other things like lights, home windows, etc. Please read these instructions carefully before installing.

It includes directions and diagrams for different kinds of wiring strategies along with other things like lights, windows, and so forth. Since , stewart warner has been the brand name for instruments you can count on a true american icon. 7) connect a good ground to terminal “g” on the back of the gauge (the ground is only used for the gauge light).

From model ts to wiring diagrams. From model ts to wiring diagrams. 18 gage wire from fuel tank to gauge.

Using 18 gauge wire, connect the (i) terminal to a switched +12v source. If not, the structure won’t function as it should be. All instructions refer to viewing from the rear.

Each component ought to be placed and linked to other parts in particular manner. From model ts to wiring diagrams. Stewart warner amp gauge wiring diagram wiring diagram is a simplified adequate pictorial representation of an electrical circuit.

Diagram stewart warner fuel gauge wiring full version hd quality. Fuel level gauge wiring (figure 4): 49 and mechanical gauges for a variety of applications ammeter.

With this sort of an illustrative manual, you’ll be capable of troubleshoot, stop, and total your projects without difficulty. Any wire that supplies 12v ignition switched constant etc should be properly fused recommended fuse sizing. Since , stewart warner has been the brand name for instruments you can count on a true american icon.

Make sure the firewall hole is grommeted for wire insulaton protection from chaffing. Wiring diagram includes many detailed illustrations that display the relationship of various products. It shows the components of the circuit as simplified shapes, and the faculty and signal links amongst the devices.

Ideal for heavy duty and automotive applications alike, iconic deluxe™ gauges combine distinctive styling with robust construction, including a. 2) wire, minimum, with an insulation temperature rating of 220° f (105° c), minimum, from the battery terminal Wiring diagrams installation instructions technical sw fuel gauge woes wings electric sel tachometer smiths e troubleshooting stewart warner tach studebaker 118860 1 5 quot questions stage 3 msd deluxe level p n 82303 hot rod forum amp need help team detailed all vintage corsa meter problems the 1947 install.

Connect ground wire from ground post on gauge to suitable chassis ground. 5) connect a minimum 10awg wire from the alternator “output” to terminal “s” of the amp gauge. Without it you will not know there is a problem until it is too late.

The gauge has 3 posts on it. Otherwise, the structure won’t function as it ought to be. Stewart warner amp gauge wiring diagram valid voltmeter wiring diagram album diagrams wire center is just one of the many collections of sample.

Sep 06, · vdo guages i bought don t work img source: Stewart warner gauges set the industry standard in classic gauge design almost 50 years ago. Stewart warner heavy duty electrical tachometer 3500 rpm 12v 3 8 in 82619.

Each component ought to be placed and connected with different parts in specific way. Ammeter shunted electric speedometer hall. Stewart warner amp gauge wiring diagram.

2 that the mounting bracket fits over and 1 on the rear housing of the gauge. Diagramweb.net stewart warner voltmeter wiring diagram installation instructions re mended panel cutout hole how to install your instrument s contact your local stewart warner distributor or contact our technical support team toll voltmeter wiring figure 5. Run two new #8 awg wires from the chosen gauge mount position to the battery junction block.

Wiring diagram consists of many detailed illustrations that show the connection of assorted things. Stewart warner fuel gauge wiring diagram wiring diagram is a simplified conventional pictorial representation of an electrical circuit. Dc ammeter shunt wiring diagram l fd8e3c77ca6fd112 gif 1479 786 diagram car amplifier wire stewart warner amp gauge wiring diagram wiring diagram is a simplified adequate pictorial representation of an electrical.
